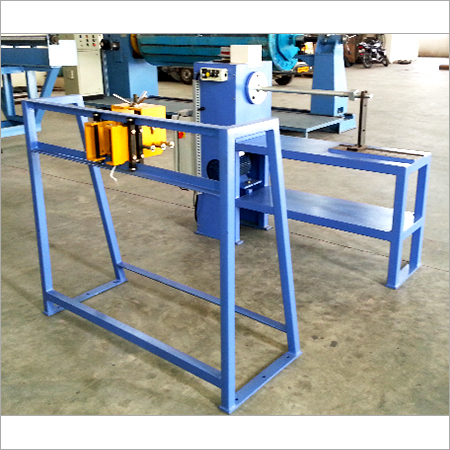

Manual LV Coil Winding Machine

Get a Price/Quote

Manual LV Coil Winding Machine Specification

Product Type
Low Voltage Coil Winding Machine

General Use
Transformer and Motor Coil Winding

Material
Mild Steel & Cast Iron

Type
Manual LV Coil Winder

Weight (kg)
Approx. 35-45 kg

Computerized
No

Automatic
No

Control System
Manual

Power Source
Manual

Power Consumption
Zero

Coil Diameter
Up to 400 mm

Winding Head
Single Head

Winding Speed
Depends on Hand Torque (Approx. 60-100 Turns/Min)

Winding Spindle
Single Spindle

Air Pressure
Not Required (Manual Operation)

Drive Type
Hand Operated

Dimension (L*W*H)
Approx. 500 x 350 x 400 mm

Feature
Compact Design, Rust Resistant, Easy Operation

Color
Blue & Black

About Manual LV Coil Winding Machine

Manual Lv Coil Winding Machine

We are serving our clients with high quality Manual Operated L.V Coil Winding Machine. As a trusted manufacturer, exporter and supplier, we provide these in varying specifications as per the clients requirements. Our Manual Operated L.V Coil Winding Machine are featured with low maintenance, optimum performance, high strength, efficiency, durability, stability, simple operation etc. These are manufactured with the assistance of expert professionals to ensure consistently high standards at all the levels. Further, available at pocket friendly prices, our products are widely demanded in the industry.

Specifications:

Model	Wdg Speed RPM	Possible winding length-mm	Power K.W
DMLW-2H	0-100	600	1.5
DMLW-3H	0-100	800	2.2

Versatile Coil Winding Solution

Ideal for transformer and motor coil tasks, this manual winder accommodates up to 200 mm coil width and 400 mm coil diameter. Its single head and spindle design ensure easy handling for varied workshop needs, while adjustable mounting supports versatile placements.

Ergonomic and User-Focused Design

Featuring an ergonomic metal crank handle, this manual coil winder allows prolonged use without fatigue. The low-noise operation and straightforward manual controls provide an uncomplicated user experience even for extended projects.

Durable and Maintenance-Friendly

Made from high-quality mild steel and cast iron, and finished with powder coating, the machine is built to last. Its low maintenance requirements and robust construction give users confidence in consistent, long-term performance.

FAQs of Manual LV Coil Winding Machine:

Q: How is the manual LV coil winding machine operated?

A: The machine is manually operated using an ergonomic metal crank handle, offering bi-directional, easy-to-control winding. No electricity or air pressure is required; winding speed depends on the users hand torque, generally achieving 60 to 100 turns per minute.

Q: What type of coils can be produced or repaired with this machine?

A: This machine is suitable for manufacturing and repairing low voltage transformer and motor coils, supporting coil widths up to 200 mm and diameters up to 400 mm, making it adaptable for various applications in electrical workshops.

Q: When should I consider using this manual coil winder instead of an automatic machine?

A: Opt for this manual winder if you need a reliable, portable solution that operates independently from power sources, offers precise manual control, or if you require a low-maintenance, budget-friendly option for small-to-medium coil winding tasks.

Q: Where can the coil winding machine be installed in my workspace?

A: The device provides mounting provisions for both table top and floor setups, offering flexibility to fit your workspace layout and ensuring stability during operation.

Q: What is the process for winding coils with this machine?

A: Secure the wire spool on the adjustable holder, set your workpiece on the spindle, and use the crank handle to wind. A mechanical counter (optional) can help track the number of turns. The winding direction is manually reversible to suit coil requirements.

Q: What are the main benefits of using this manual LV coil winder?

A: Key advantages include zero power consumption, low noise, minimal maintenance, a compact and durable rust-resistant frame, ease of operation, and suitability for various coil sizes. Its robust design ensures reliable service over an extended period.
